Hosting on a webserver🌶

Here we describe how to host your Jupyter Book project on a TU Delft webserver, including requesting the server, setting it up as a webserver and updating it through GitLab CI/CD.

Requesting a TU Delft (web)server¶

Talk to your department’s IT support to ask for support in setting up a virtual TUD linux server (FMS). If agreed upon, you can request a FMS, specifically a linux (Ubuntu) server with ports 22 (ssh), 80 (http) and 443 (https) open. Faculty domain specific servers are preferred (e.g. somesite.tnw.tudelft.nl over somesite.tudelft.nl).

When approved and made available, an email is sent with the first details. In the following step you will need this email and the information provided there.

Setup TU Delft webserver¶

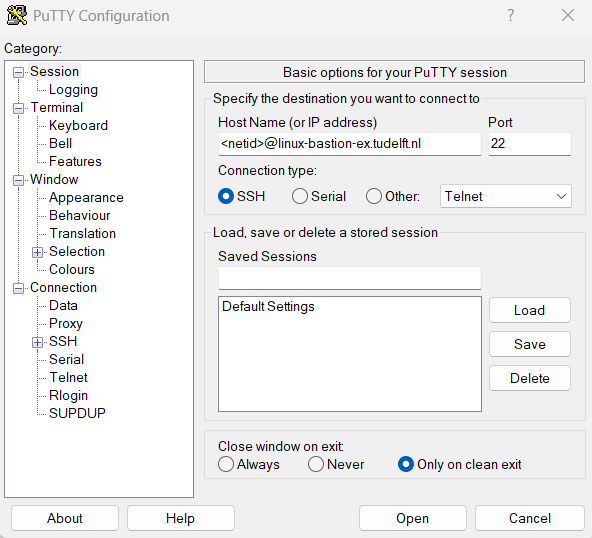

1. Use putty to connect to the server via ssh. HostName is given under Step A (connect to linux-bastion). Click Open.

2. Click accept, allowing the computer to connect to the server.

3. Login with your netID (without @tudelft.nl)

4. Use the information under Step B (use SSH Key-Based Authentication). (ssh <servername>.tudelft.nl)

You are now logged in to the server.

5. We first install the webserver (apache). Run sudo apt install apache2.

6. We can check whether it successfully installed by going to the server’s IP address in a web browser. You should see the default apache page. Or confirm by running sudo systemctl status apache2 and checking whether the service is active (running).

7. Make a second user sudo adduser web, make a password (14 characters) for this user. We will use this user for uploading materials to the webserver. If there is a breach, there is only limited access to the server using this user.

Everything that is in home/web/ will be visible on the webserver (after taking this step). You can use cd /home/web to navigate to this directory.

8. Assign your self the web user: sudo -u web bash - and navigate to home/web.

9. Make a directory call .ssh by running mkdir .ssh and navigate to it.

10. Create an ssh key by running ssh-keygen. Do not use a passphrase. This a vulnerability but is necessary for the webserver to be able to pull from GitLab/GitHub without manual input.

Two keys are generated: id_rsa (private key) and id_rsa.pub (public key). The public key needs to be copied to an authorized_keys file.

11. Run cp id_rsa.pub authorized_keys to do this. You will need the private key later to connect GitHub/GitLab and the server.

We are now ready with setting up the server, but need to secure it.

12. Run sudo -i to become a superuser. We need to install a firewall which can be done by running apt install ufw.

13. We need to allow ssh, http and https traffic through the firewall. This can be done by running ufw allow ssh, ufw allow http and ufw allow https. Enable the firewall by running ufw enable. You can check the status of the firewall by running ufw status.

14. Run apt install fail2ban to install fail2ban, which is a software that protects against brute-force attacks. It works by monitoring the log files for failed login attempts and banning the IP address after a certain number of failed attempts. You can check the status of fail2ban by running systemctl status fail2ban.

If you decided to maintain your server yourself, you will need to regularly check for updates and security patches. This can be done by running apt update and apt upgrade. You can also set up automatic updates by running apt install unattended-upgrades and configuring it to your needs.

Change start dir¶

Apache has set the home folder to var/www where we want it to be home/web. Using the terminal:

1. Run sudo nano /etc/apache2/sites-available/000-default.conf

2. Change DocumentRoot /var/www/html to DocumentRoot /home/web.

3. Add:

<Directory /home/web>
    Options Indexes FollowSymLinks
    AllowOverride All
    Require all granted
</Directory>

4. Save the changes Ctrl+O, Enter, Ctrl+X and run sudo systemctl restart apache2

5. Follow steps 2-4 after: sudo nano /etc/apache2/sites-available/default-ssl.conf

6. Run

sudo a2ensite default-ssl.conf
sudo a2enmod ssl
sudo systemctl reload apache2

7. Check whether Syntax OK is shown after running: sudo apache2ctl configtest, else: sudo systemctl restart apache2

Request SSL-certificate¶

Although the webserver is now ready, we need to request an SSL-certificate:

Run:

sudo apt update
sudo apt install certbot python3-certbot-apache
sudo certbot --apache -d <server>

and test:

sudo apache2ctl configtest
sudo systemctl reload apache2

WinSCP¶

You can now connect to your server using e.g. WinSCP (see hpcwiki.tudelft.nl) and copy paste your files. However, it may be more convenient to use GitLab and a CI/CD script to do this ‘automatically’.

CI/CD using GitLab¶

To host your website on a university webserver you’ll need:

• a gitlab repo with CI/CD script (provided below)

• a (linux) webserver (made ready above)

• an SSH key (done)

• a runner and docker (next to be covered)

Install a runner and docker¶

We have some jobs that need to be run for making our website from our markdown files. We therefore need a GitLab Runner. This is an application that works with GitLab CI/CD to run those jobs. We also need a docker, a standalone, executable file used to create a container. This container image contains all the libraries, dependencies, and files that the container needs to run.

For installing a gitlab runner, we follow mainly this documentation.

1. On your server, check whether there is already a gitlab-runner which gitlab-runner

2. Follow these step

3. Registration is yet not necessary, can be done in gitlab.

4. Check whether the gitlab-runner is running: sudo gitlab-runner status

5. Now the runner is installed, check whether a docker is installed which docker

6. If not present, install docker using these steps by first removing any previous docker (components)

sudo apt remove $(dpkg --get-selections docker.io docker-compose docker-compose-v2 docker-doc podman-docker containerd runc | cut -f1)

and subsequently following these installation steps.

7. Check whether any upgrades need to be made sudo apt list --upgradable and install these sudo apt upgrade.

With a runner and a docker available, we can go to GitLab and make use of these.

8. Go to GitLab to your group / repository and click Build $\rightarrow$ Runners. Click Create group runner. This will lead you through a stepwise process to connect your runner to the gitlab group. Using tags you can ‘connect’ certain jobs to the specific runner. For now, choose Run untagged jobs. Create a clear runner description.

9. Using sudo copy paste Step 1 in the command line (register). Check whether the URL is set correct, create a name for the runner (spaces allowed in name), as executor choose docker, as image choose alpine:latest.

In <etc/gitlab-runner> you can now find the config.toml file with the settings of the runner.

CI/CD script¶

Below we provide an example CI/CD script that converts the markdown and Jupyter Notebook files to html and upload these files to the webserver.

In the script we make use of variables which can be set at either group level (when more repositories are used) or at repository level. The variables in the group are inherited at repo level. We need to set:

A good strategy would to be to define the first three at group level and the path at repo level.

Make sure that the below .yml-file is in your root folder. In the repo that you want to connect to the server, click Settings, CI/CD and then Runners. Choose the runner that you created above, and all is set. With every new commit your webpage should be updated. In Build, Pipelines you can see whether the jobs have been run correctly and check the full log of the build (if any errors occur).

stages:
  - deploy

image: python:3.11-slim

variables:
  SSH_COMMAND: 'ssh -o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null -o IdentitiesOnly=yes'
  LOCAL_BUILD_DIR: "_build/html"
  HOST: "127.0.0.1"             # prevents running local host resulting in an error
  BASE_URL: ""                  # specify the base url, e.g. the folder from root

before_script:
  - apt-get update
  - apt-get install -y --no-install-recommends curl rsync openssh-client git

  # Node.js
  - curl -fsSL https://deb.nodesource.com/setup_20.x | bash -
  - apt-get install -y --no-install-recommends nodejs
  - node --version
  - npm --version

  # Python deps
  - python -m pip install --upgrade pip
  - pip install mystmd
  - pip install -r requirements.txt

  # SSH key laden
  - eval "$(ssh-agent -s)"
  - chmod 400 "$WEBSITE_UPLOAD_KEY"
  - ssh-add "$WEBSITE_UPLOAD_KEY"

deploy:
  stage: deploy
  script:
    # builds the book
    - myst build --html

    # syncs with the server
    - rsync -ravz "${LOCAL_BUILD_DIR}/" -e "${SSH_COMMAND} -i ${WEBSITE_UPLOAD_KEY}" "${DEPLOY_USER}@${DEPLOY_HOST}:${DEPLOY_PATH}/"
